MOHOC® 2 IP
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE
Designed as a customizable platform, MOHOC® 2 can be tailored to match many C6ISR requirements. The MOHOC® 2 IP Camera is built to stream real-time video over mobile ad hoc networking (MANET) radios. Created as a live sensor for the hyper-enabled operator, it maximizes situational awareness at the tactical edge.
The MOHOC® 2 IP outputs IP video compatible with radios and networks that accept IP video.
•Plug-and-Play Radio Integration- connects directly to IP based radios and networks via Ethernet cable (RJ45) •20x Improved Low-Light Sensitivity

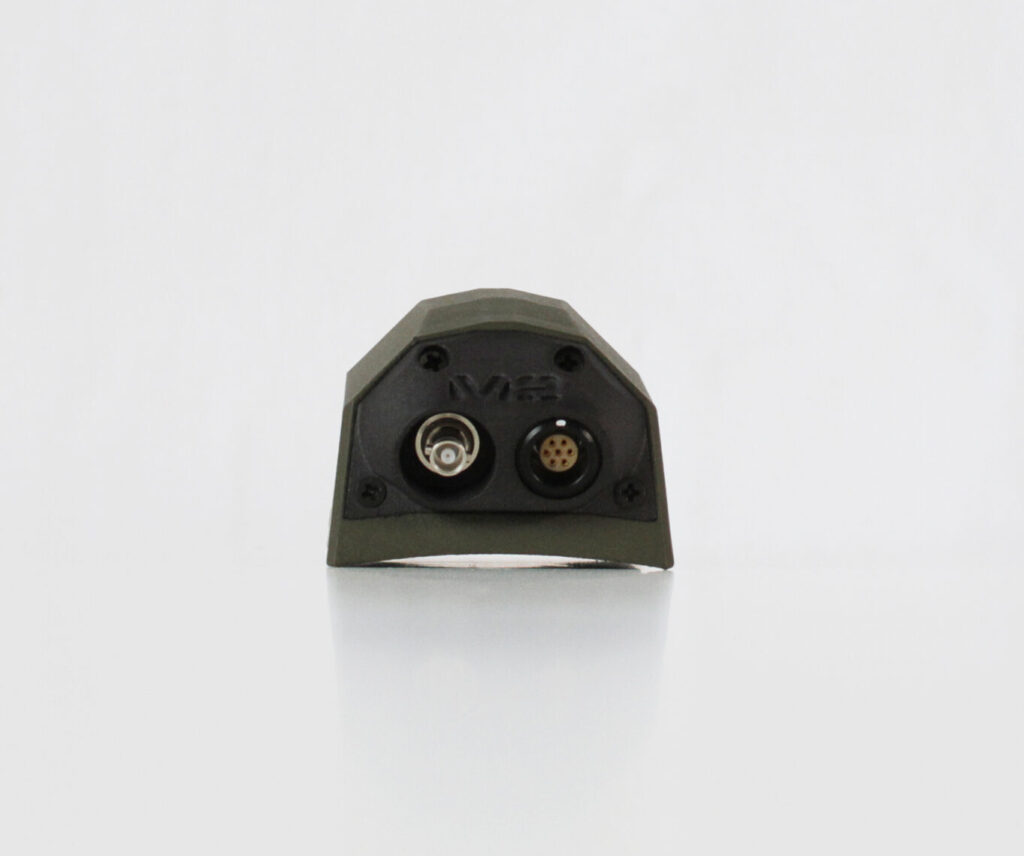

•MIL Spec cables and ports – customized cables and connectors available on request to integrate directly to different radio or network requirements •Outputs 3 different video streams that are customizable (2 x h.264, 1 x MJPEG)

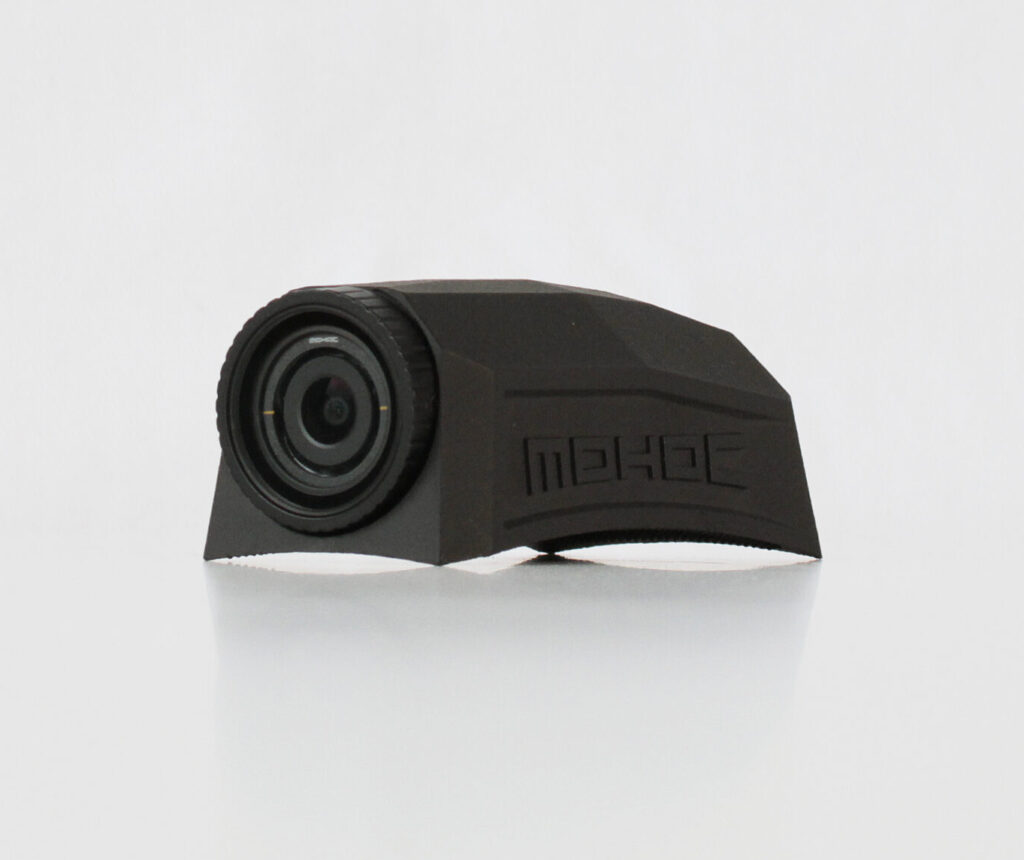

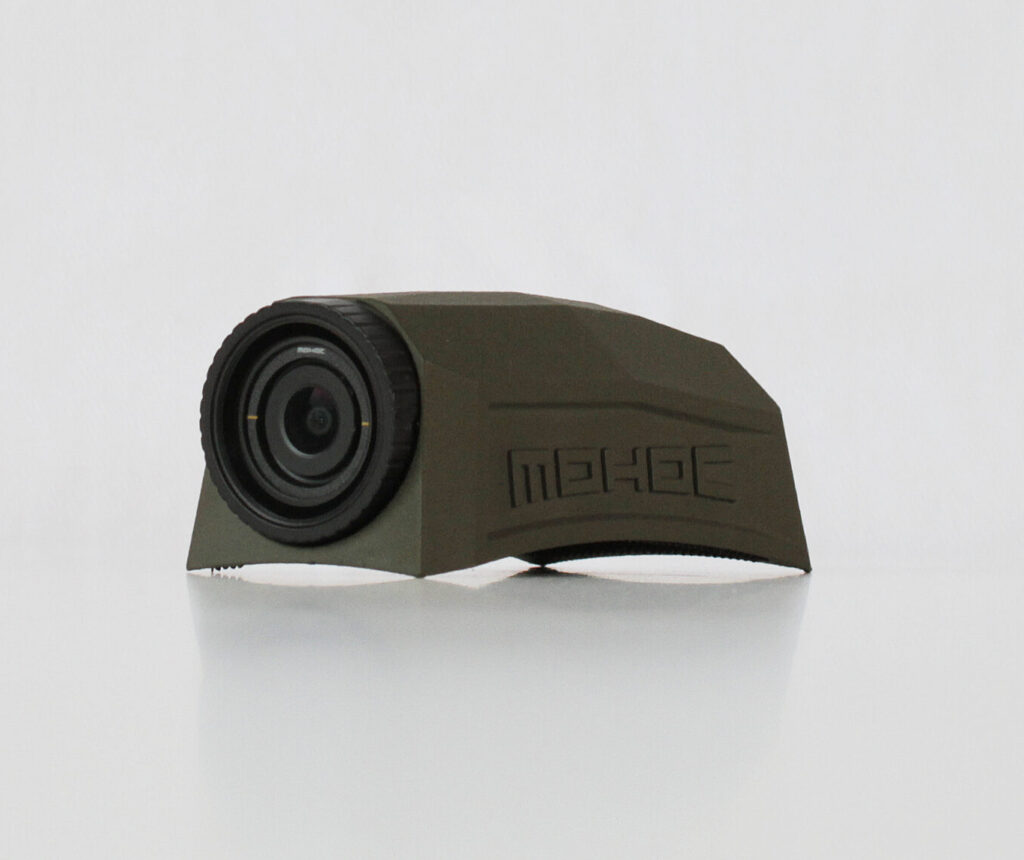

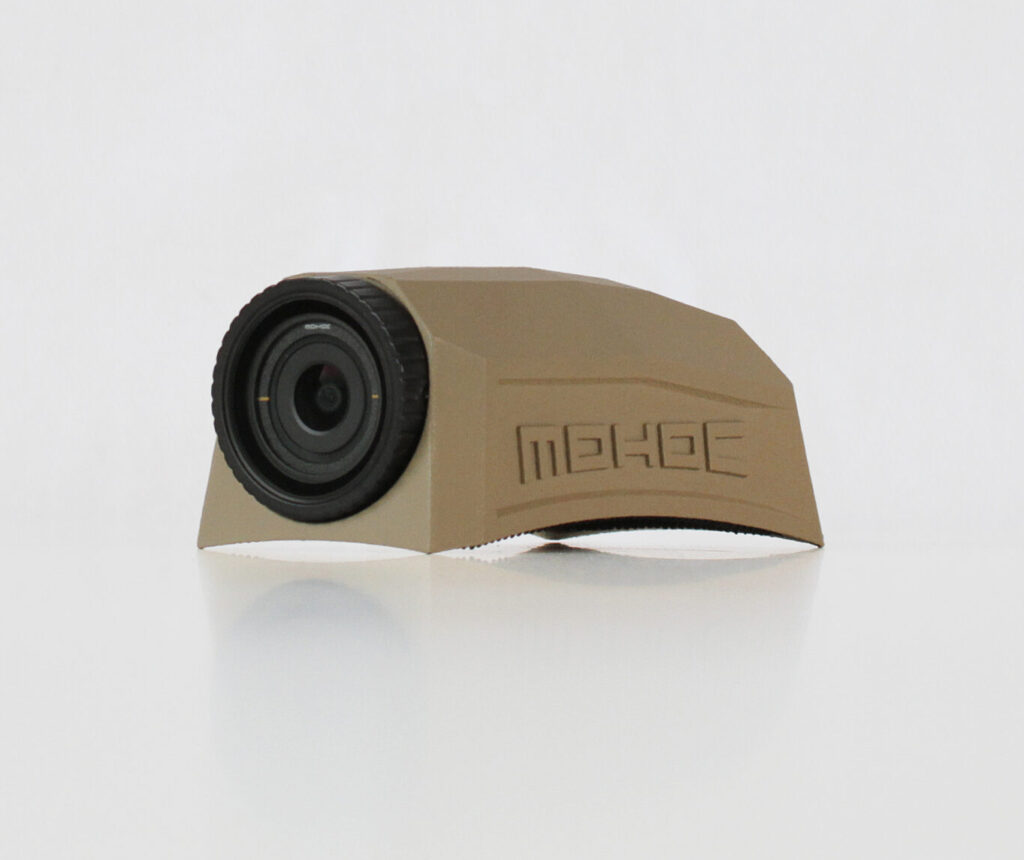

All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.
MOHOC® 2 cameras are built to order, so estimated lead time is 60 days after receipt of order. MOHOC Customer Service will be in touch after your order to confirm color, connected device compatibility, and estimated lead time.
MOHOC® 2 IP
SITUALTIONAL AWARENESS AT THE TACTICAL EDGE
| OUTPUT | 2 x H.264, 1 x MJPEG |
| RESOLUTION | 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240 |
| FPS | 30, 15, 10, 6, 5, 3, 2, 1fps (60hz) or 25, 12, 8, 5, 1fps (50hz) |
| BITRATE | 1~20Mbit (6Mbit) |
| BITRATE CONTROL | Off, VBR, CBR |
| STREAM OPTIONS | RTSP address for 1st/2nd H.264 and MJPEG Stream |
| NETWORK PROTOCOL | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif |
| ON SCREEN DISPLAY | Available Via Web Browser |
| POWER CONSUMPTION |
DC5~18V, Max.130mA@DC12V |
IP VIDEO GENERAL SPECIFICATIONS
IMAGE SENSOR 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
MIN. ILLUMINATION 0.006Lux @F2.0, 0.0002(DSS on) in visible light
OPTICS/LENS Aperture F2.0, 120º Field of View
SCANNING SYSTEM Progressive Scan
ELECTRONIC SHUTTER 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
DURABILITY IP50 standard connectors, IP68 connectors optional
US Pat no. 10,802,379
